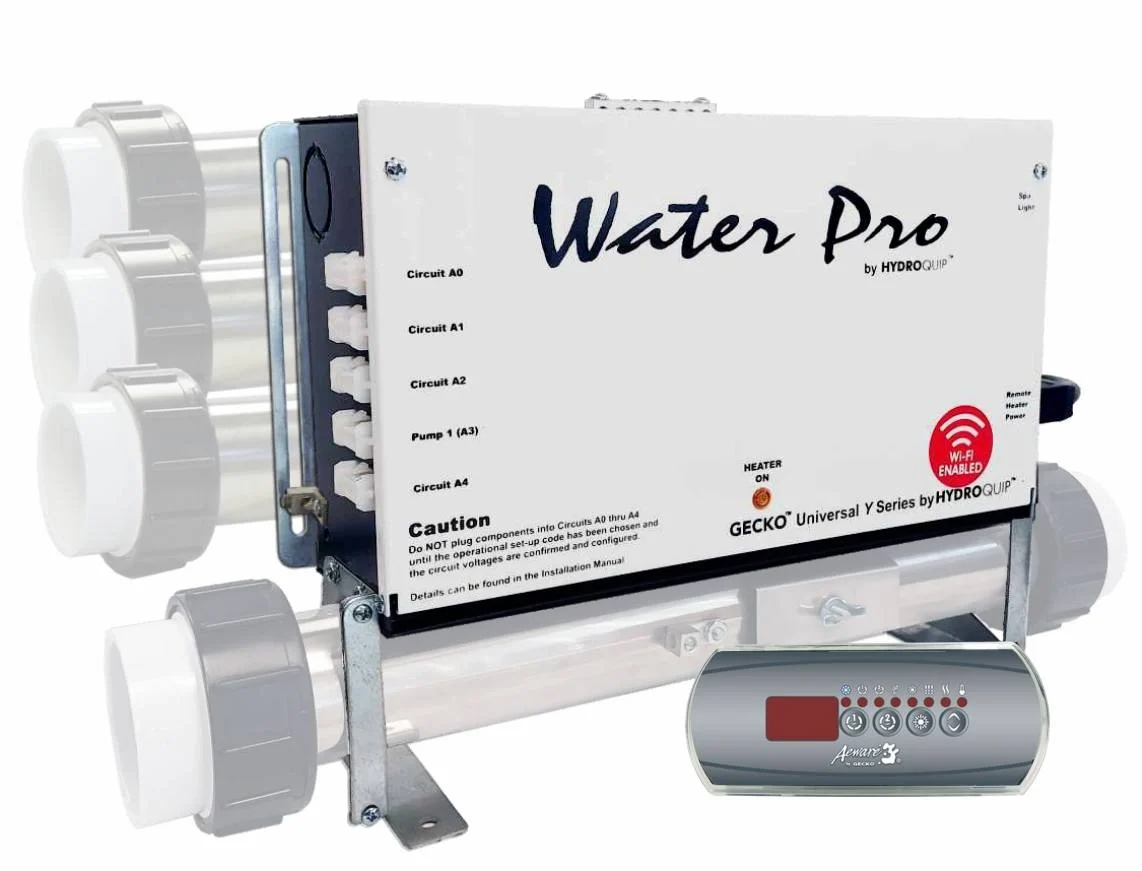

HydroQuip Solid State Control CS6P59Y-US-2

HydroQuip Solid State Control System CS6P59Y-US-2

The HydroQuip CS6000 Slide series solid state control systems are the most versatile control units with its one of a kind vertically adjustable heater. Mount the heater where you need it - anywhere along the back of the control box, underneath, or remote! HydroQuip control systems are energy efficient and are easy to install and are the oldest and most trusted hot tub control system manufacturer.

The HydroQuip CS6P59Y-US-2 Control System Can Operate:

• 1- 5.5 KW Stainless "SLIDE" Heater Assembly
• 1- Two Speed Pump Either 120 Volt or 240 Volt
• 1- Two Speed Pump Or Blower
• (A total of 2 Two Speed Pumps or One Two Speed Pump and a Blower)
• 1- Ozonator (120 Volt or 240 Volt)
• 1- Spa Light
• (All Circuits are convertible to 120 or 240VAC)

The HydroQuip CS6P59Y-US-2 Control System Features:

• 120 Volt / 240 Volt Convertible Power
• 1.375 KW at 110 Volts / 5.5 KW at 240 Volts "SLIDE" Heater
• "VDS" Visual Diagnostics

• Smart Freeze Protection
• Ozone Circuit (120 Volt / 240 Volt)
• Light Circuit (12 Volt)
• Heater "ON" Indicator Light
• "Paint-Lock" Rust Proof Enclosure
• Detailed Owners Manual
• Detailed Wiring Diagram
• 2 Year Manufacturers Warranty Standard

The HydroQuip Water Pro CS6P59Y-US-2 System Includes:

• CS6P59Y Control System
• 5.5 KW Stainless "SLIDE" Heater Assembly
• in.k200 Top Side Control Panel
• Top Side Control Panel Adapter Plate
• Tailpieces with Gaskets

Dimensions:

• 15" Wide X 11" High X 6" Depth

Note:

• The HydroQuip Control Systems are designed to be installed by a pool and spa professional

HydroQuip CS6P59Y-US-2 (Formerly known as CS6229Y-US and CS6209Y-US)
