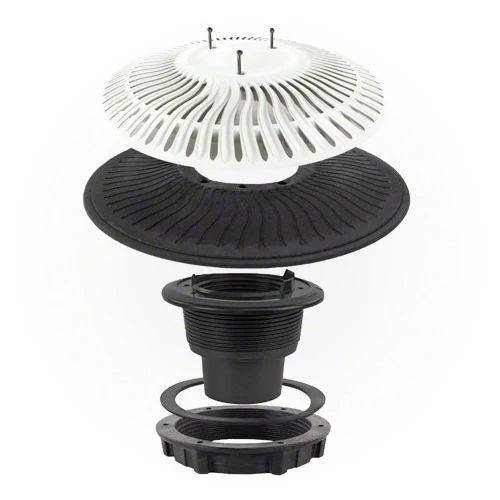

Paramount SDX2 10" Round High Flow Suction Outlets - 2 Pack - Vinyl Pools

SDX2 is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. SDX2 boasts a flow rating of 188 gpm on the floor and 154 gpm on the wall making it compatible with most residential pumps up to 3 hp. SDX2 has a 1.396 feet per second velocity at the opening at a maximum listed 188 gpm.

The SDX2 Sumpless suction/main drain outlets can be used on the pool floors or walls and are designed to installed during new construction or remodels when a new plaster ring is being installed (such as when a new interior finish is being applied).

• 10" Round main drains for vinyl pools
• Includes 2 complete main drain suction outlets
• Anti-vortex shield blocks contact from direct suction
• Ribbed design acts as 60 "mini" drains
• Secondary support plate protects the sump and fittings
• Made from UV-resistant engineered polymer
• No sump required
• Stainless steel security screws
• SDX retro can be installed as a single cover with an SVRS installed on the suction line
• ASME A112.19.8 – 2007 Listed
• Compliant with the Virginia Graeme-Baker Pool and Spa Safety Act
• USPC (uniform swimming pool, spa and hot tub code) compliant

• Replace every five years from the date of purchase

• Floor -188 gallons per minute
• Wall -154 gallons per minute
